Production capacity: 15–48 t/h
Thickness of input material: 30%–40%
Power: 0.72–2.2 kw
Screen area: 4.5–8.1 m2
Material handling: iron ore, tin, tungsten, tantalum, niobium, etc

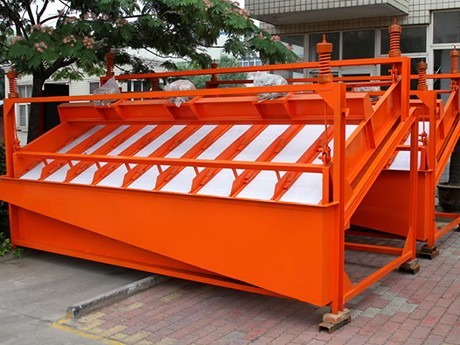

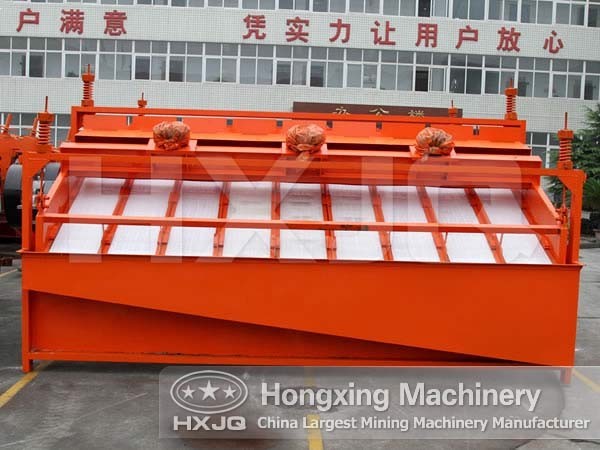

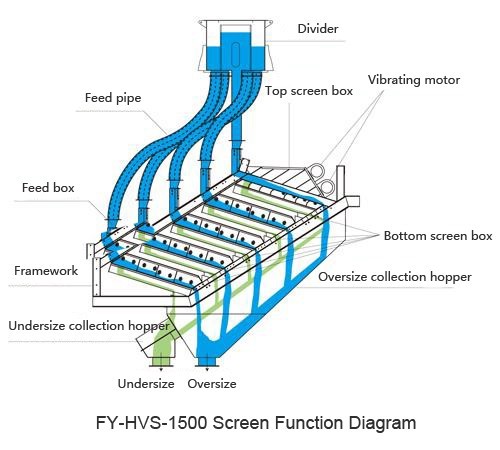

High frequency screen is composed of exciter, pulp distributor, screen frame, rack, hanging spring and screen mesh.
High frequency screen has high efficiency, small amplitude and high screening frequency. This creates a good separation environment in which the materials smaller than the separation granularity and especially the materials and pulp with big proportion all can go through the screen holes.
High frequency screen is composed of exciter, pulp distributor, screen frame, rack, hanging spring and screen mesh. It has high efficiency, small amplitude and high screening frequency.
| Specification Model |
Processing capacity（t/h） |
Power （kw） |
| GPS-4 | 15-25 | 0.72 |
| GPS-5 | 20-30 | 1.1 |
| GPS-6 | 24-36 | 1.5 |
| GPS-7 | 32-48 | 2.2 |
